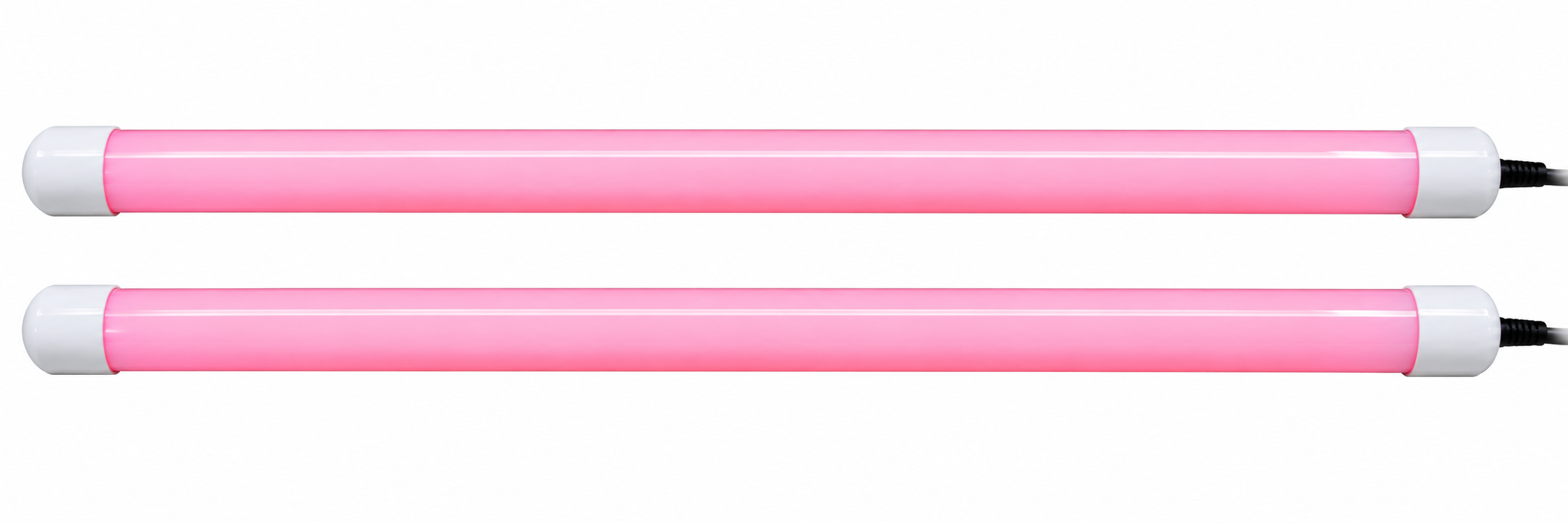

Coloured LED Stick Light

Our Led stick light are designed for linear coloured effects ideally used in  night clubs or shop window displays art displays. Can be used  vertically or in  horizontal position.
The led light comes in numerous colours and lengths to achieve the colour effect you require with a 300 degree linear light angle.
The lighting effect is very close to a neon light effect.
The units can be made to work at 12 or 24 volts DC and the longer led stick light could even work on 48v DC if needed .
We also supply a 240v mains  version if required.

STANDARD LED STICK LIGHT LENGTHS

length	wattage	amps	lums
300mm	4w	0.3A	300
600mm	8w	0.6A	600
1000mm	13w	1.1A	1000
1200mm	16w	1.2A	1200
1500mm	20w	1.6A	1500
1600mm	22w	1.9A	1600
Can be made to the length you require

CHOICE OF END CAPS WE CAN SUPPLY

Covershield  can offer black rubber caps were the wire come out of the centre of the cap. White plastic caps have a Dc socket which can be in the centre or at the side of the end caps.
both end caps are 30mm diameter and are pushed in place on to the tube.

CONSTRUCTION:
Our  LED stick lights consist of our thin 12mm wide special led tape, held in place with a coloured filter  inside an strength and durability 28mm opal polycarbonate tube with  a white or black caps fastened very tightly on each end. The unit comes with a 2 m lead (can be longer if required) in either white or black. The unit comes  in a number of colours and lengths of your choice.
The units can work on 12v or 24v DC and can be made to run on 240v as well. The low voltage stick light will require a led driver which is very easy to install.

240v mains power led stick light:
The mains power led stick lights have a very small led driver built in to one end of the stick light with a 12mm plastic gland to hold the mains lead in place, come with a 3m lead can be made longer if required
