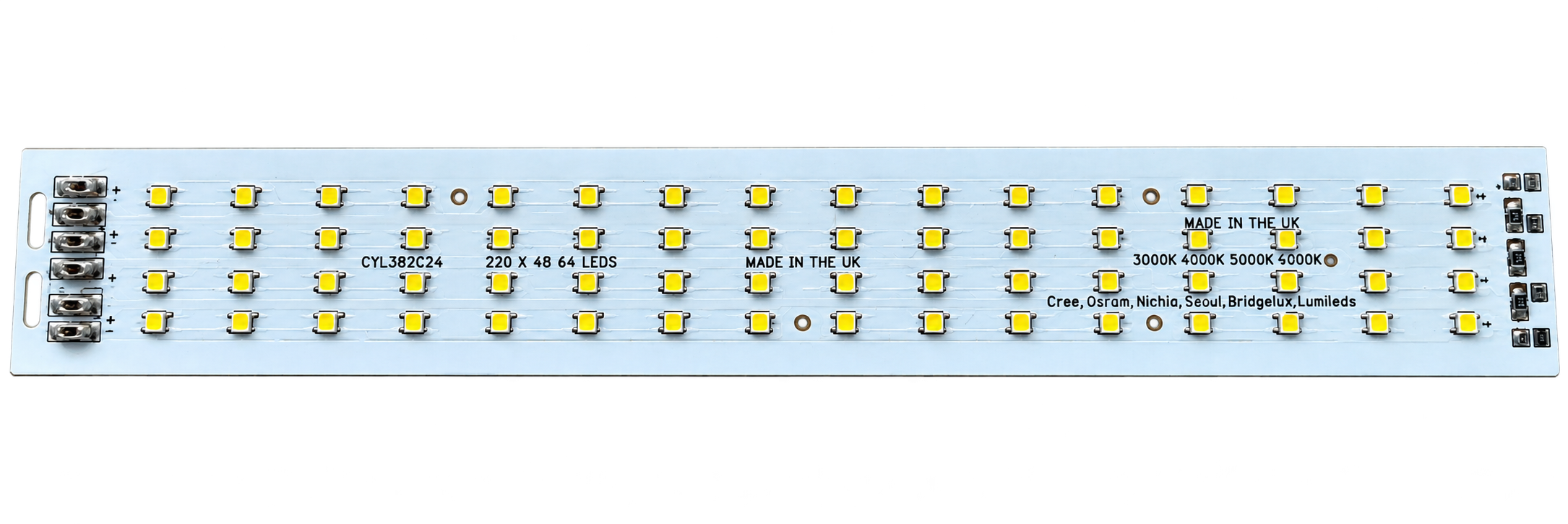

An incredable commercial-grade brightness from an ultra-sleek footprint. Measuring just 290mm by 40mm, this LED Light Engine Board punches way above its weight class, consuming dark spaces with an incredible 6000 lumens of crisp, 64 led reliable light.
Built on a rugged, premium aluminium chassis for optimal thermal transfer, this versatile board is engineered for ultimate adaptability. Whether you are building high-end custom fixtures, retrofitting warehouse troffers, or designing architectural linear lighting, this engine adapts to your exact power and performance needs. With an exceptional lifespan of up to 72,000 hours, it is built to last flawlessly for years to come.
voltages is 12v,24v,48v,96v
Performance Profiles (HE, NM, HO)
Tailor this engine to your exact design priorities:
-
- HE (High Efficiency): Maximizes energy savings and runs ultra-cool, extending system life.
- NM (Nominal Mode): The perfect sweet spot of balanced power consumption and brilliant brightness.
- HO (High Output): Blasts the full, massive 6000-lumen output for high-ceiling or high-demand environments.
Technical Specifications
Wiring: Toolless, rapid-connect push-in wire terminals
Form Factor: 290mm x 40mm Slim Linear Profile
LED Count: 64 High-Intensity, High-Efficiency Emitters
Luminous Flux: Up to a massive 6000 Lumens
Base Material: Heavy-Duty Aluminium Chassis
Voltage Flexibility: Multi-drive compatibility (12V / 24V / 48V / 96V Constant Current)
Lifespan: Rated up to 72,000 Hours of continuous performance
